UL Listed FM Approved 2500 GPM Diesel Engine Driven Fire Pump

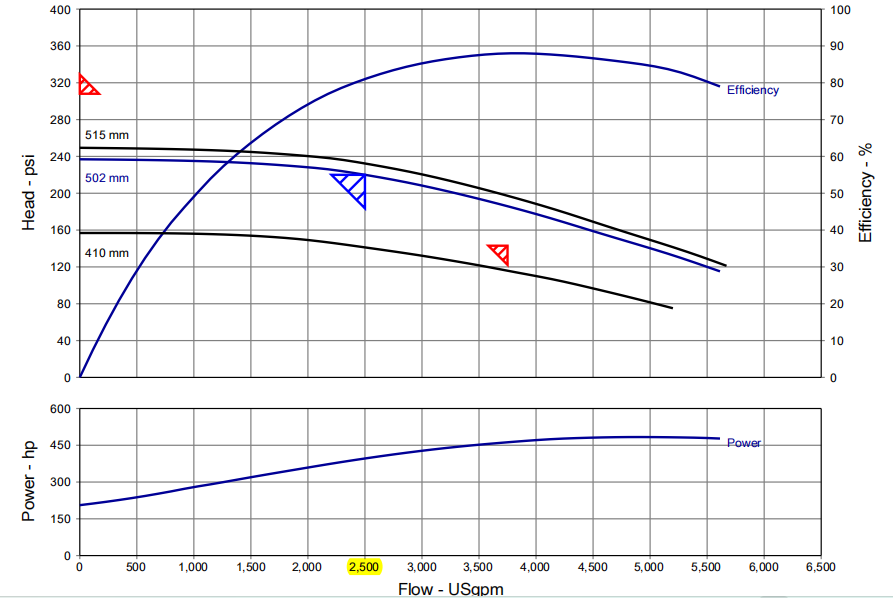

Pump Performance Curve:

Fire Pumps shall meet the following basic requirements:

1. Each pump is to be tested hydrostatically for not less than 5 miniutes. The test pressure is to be not less

than 1.5 times the maximum working pressure of the pump, but in no case less than 250 psi (1724kpa)

2. A pump shall develop not less than 65 percent of the rated total head when discharging at 1.5 times rated

capacity. The maximum net pressure for a fire pump shall not exceed 140 percent of the rated head.

3. The maximum pump brake horsepower shall not exceed the HP rating its driver, including service factor.

Wuhan Spico Machinery & Electronics Co., Ltd.（Hereinafter referred to as SPICO） is the Wuhan

office of  CNP NM Fire-fighting System Co.,Ltd (Hereinafter referred to as NM Fire). SPICO mainly resp-

onsible for product promotion，export declaration and foreign exchange collection of overseas orders.NM

Fire  is the subsidiary of Nanfang Zhongjin Environment Co.,Ltd, which islocated in Hunan Changsha

Economic and Technological Development Zone, mainly produceand sell Diesel engine &Motor fire pump

groups ,controllers and fire pumps which are in accordance with domestic & international standards and have

gotten related certifications .

With the help of multi-national engineers with more than 20 years of professional experience, the NMFIRE

technical team fully understands the technical requirements of fire fighting systems. They have overcome

difficulties, conquered technical aspects, created China's first in this industry and opened up a new market

for China's fire fighting research andtechnology.

The company’s mission is to protect the community fire safety, in line with the spirits of “integrity,

win-win”,glad to provide high cost-effective products and high-quality service for our customers.

Fire fighting is the last protection for life and property. These include strict technical, quality and testing requirements

for fire fighting equipment that are specified in the UL/FM product standard.

Under the premise of fully learning and understanding these standards, our company has invested huge sums of money

and energy in research and development of new products. Many innovative technologies have been developed through

product R&D. The pumps and diesel engines have reached the level of first class in the world. The research and

development of these two critical products has put an end to the long history in the domestic marketplace of taking

non-certified ordinary water pumps and diesel engines and using them in life safety applications. This has also completely

changed the domestic technology level of this industry and has allowed NM FIRE to lead the market

Start by meeting the customer obvious needs, follow by continuously deepening and exploring potential customer demand,

meanwhile, plant the philosophy into our soul.
