• Vertical Turbine 750GPM 120PSI Tornatech controller UL FM NFPA20 VTP Fire Pump diesel engine driven fire pump

​Applicable to hotels, airports, office buildings and other buildings,Seawater and fresh water can be used.UL/FM approved ,Applicable to NFPA20 requirements.

Main Parameters:

DESCRIPTION:

Applications

About Us

CNP NM Fire-fighting System Co.,Ltd

CNP NM Fire-fighting System Co.,Ltd is a leading manufacturer of fire pumps, diesel engines, controllers, diesel engine driven fire pump set, electric motor driven fire pump set, fire pump package system and containerized fire pump package system in accordance with domestic & international standards. We are a member of the National Fire Protection Association (NFPA) and the European Fire Sprinkler Network (EFSN). The technical team consists of a number of engineers and foreign experts who have more than 20 years of experience in research and development for global fire-fighting equipment. We can offer you a wide range of fire pumps and diesel engines which have gotten UL, FM(America), APSAD(France), SETSCO(Singapore) certificates that meet every fire protection needed.

NMFIRE is the first NFPA (National Fire Protection Association) member in China's pump industry and also the only Chinese company among the members of EFSN (European Fire Sprinkler Network). We are the first company in China to receive both UL and FM certifications and the only company in the world to manufacture UL/FM certified fire pumps and UL/FM diesel engines. Our company was a key contributor in the revision of China's fire pump industry standards. Our product technology and range in products are industry leading in both the domestic and global market place.

Our mission is to produce the highest standard products with the advanced technology to "Protect life, love and history" for the big world.

• Product Details

VTP_vertical_turbine_parameter_table

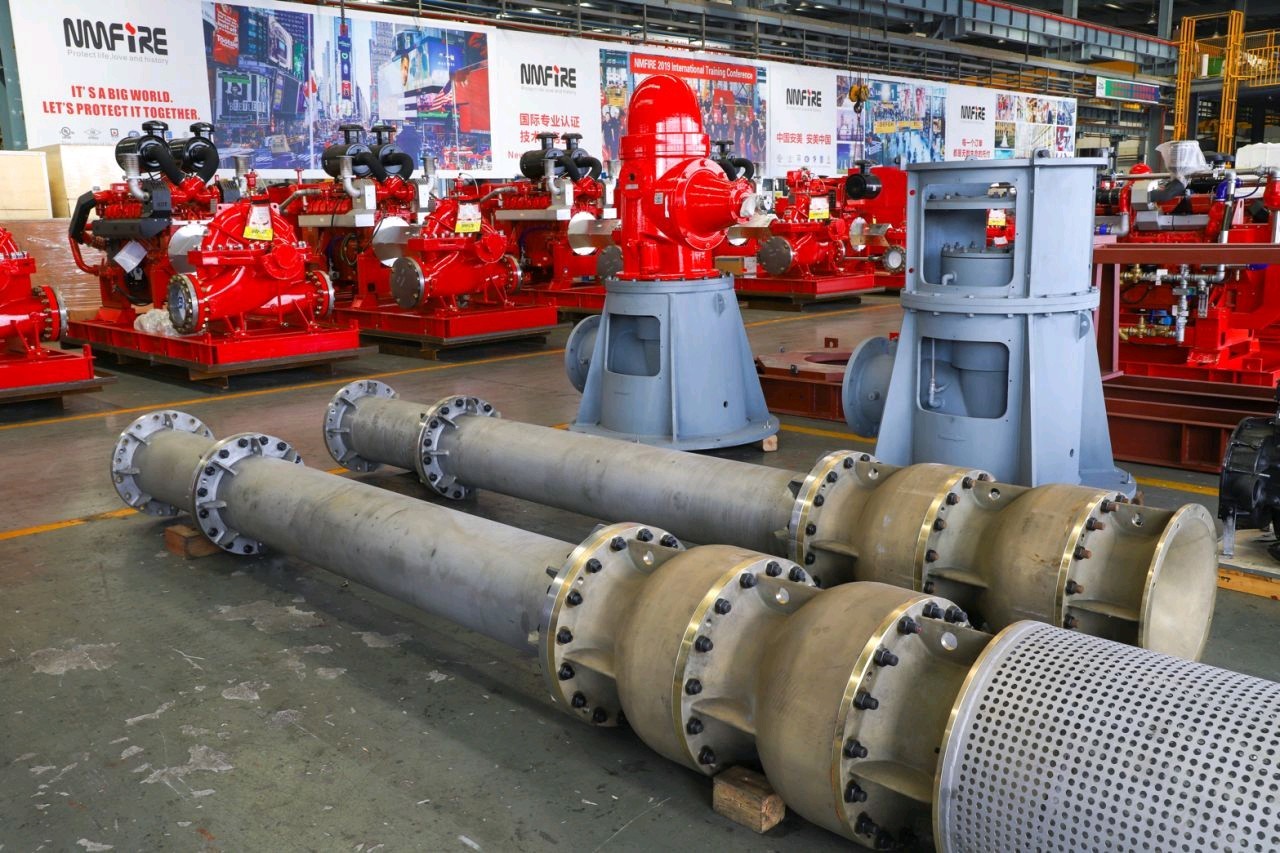

NM FIRE Vertical Shaft Turbine UL/FM FIRE PUMP
NO.	Pump Model / Outlet Size / Min Submergence	Flow	Head
		(usgpm)	(psi)	(m)
1	100VTP40~6 Outlet Size 4" Min Submergence	100	40~270	28~190
		150	40~263	28-185
		200	40~259	28~182
		250	40~253	28~178
2	150VTP200~17 Outlet Size 6" Min Submergence	500	40~213	28~150
		750	40~182	32~24
		500	40~230	28~162
		750	45~188	44~32
3	200VTP250~22 Outlet Size 8" Min Submergence	750	55~288	50.8~40
		1000	50~267	36~188
		750	40~263	28~185
		1000	40~249	28~175
4	250VTP400~28 Outlet Size 10" Min Submergence 151cm	1250	41~305	28~214
		1500	40~292	28~205
		1500	58~285	40~200
		2000	63~251	44~176
5	250VTP550~26 Outlet Size 10" Min Submergence 171cm	2000	40~194	28~185
		2000	57~266	40~187
		2500	61~245	43~172
6	300VTP860~43 Outlet Size 12" Min Submergence 180cm	2500	50~245	35~172
		3000	53~235	37~165
7	350VTP860~43 Outlet Size 12" Min Submergence 180cm	2500	74~236	52~166
		3000	69~230	48.5~162
		3500	73~222	51~156
		4000	104~207	73~145
8	350VTP1250~36 Outlet Size 14" Min Submergence 250cm	3500	48~250	34~176
		4000	46~244	33~172
9	400VTP1250~36 Outlet Size 16" Min Submergence 250cm	4000	61~270	43~190
		4500	60~264	42~186
		5000	253	178

In addition to the above models, there are many model UL/FM testing in process.

Looking forward to your enquiry.

FAQ

Q1.Do you have the UL-LISTED Fire Pump Sets?

Yes, We have the UL/FM and NFPA standard Fire Pump Sets.

Q2.Please quote the XXGPM@XXXPSI Pump without driver.

Sorry, pump are not sold separately, pumps and drives are sold together.

Q3.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?

Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.

Q4.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?

You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.

Q4.I need the UL Vertical Tubine Fire Pump Set ,please sent me the price.

For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage Frequncy and the tank deep.

For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed and the tank deep.

If you need Jockey Pump or other accessories,please tell us together.

Q5.May I ask what is the lead time of this fire pump and the jockey piump if ever we order them from you?

Under normal cicumstance,75days ,we will notify the delivery date after receiving the deposit.

Q6.Please advise if you can also send me the cost for the freight?

Pls. confirm the model first,then we wil estimate estimate. The Fire Pump Sets are customized production, actual packaging size and estimated size will be different.

• Service:

1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.

Wuhan Spico Machinery & Electronics Co., Ltd.（Hereinafter referred to as SPICO） is the Wuhan

office of  CNP NM Fire-fighting System Co.,Ltd (Hereinafter referred to as NM Fire). SPICO mainly resp-

onsible for product promotion，export declaration and foreign exchange collection of overseas orders.NM

Fire  is the subsidiary of Nanfang Zhongjin Environment Co.,Ltd, which islocated in Hunan Changsha

Economic and Technological Development Zone, mainly produceand sell Diesel engine &Motor fire pump

groups ,controllers and fire pumps which are in accordance with domestic & international standards and have

gotten related certifications .

With the help of multi-national engineers with more than 20 years of professional experience, the NMFIRE

technical team fully understands the technical requirements of fire fighting systems. They have overcome

difficulties, conquered technical aspects, created China's first in this industry and opened up a new market

for China's fire fighting research andtechnology.

The company’s mission is to protect the community fire safety, in line with the spirits of “integrity,

win-win”,glad to provide high cost-effective products and high-quality service for our customers.

Fire fighting is the last protection for life and property. These include strict technical, quality and testing requirements

for fire fighting equipment that are specified in the UL/FM product standard.

Under the premise of fully learning and understanding these standards, our company has invested huge sums of money

and energy in research and development of new products. Many innovative technologies have been developed through

product R&D. The pumps and diesel engines have reached the level of first class in the world. The research and

development of these two critical products has put an end to the long history in the domestic marketplace of taking

non-certified ordinary water pumps and diesel engines and using them in life safety applications. This has also completely

changed the domestic technology level of this industry and has allowed NM FIRE to lead the market

Start by meeting the customer obvious needs, follow by continuously deepening and exploring potential customer demand,

meanwhile, plant the philosophy into our soul.
