    300 GPM 83 PSI Fire Fighting Pump System , SS UL FM Diesel Fire Pump Package

    Ask Lasest Price
    Brand Name : CNP NM FIRE
    Model Number : SCF200-150-330
    Certification : UL /FM/NFPA20
    Price : Negotiation
    Payment Terms : L/C, T/T
    Delivery Time : 60 Days
    • Product Details
    • Company Profile

    300 GPM 83 PSI Fire Fighting Pump System , SS UL FM Diesel Fire Pump Package

    • Electic Motor Driven Pump 300GPM 83PSI fire Pump Fire Fighting Pump fire products UL FM NFPA20

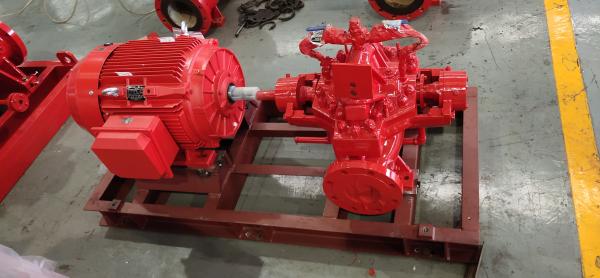

    • Split Case Motor Pump Set Product Details

    Motor Pump Set
    NM Fire Split Case Pump
    Model
    SCF125-80-250(UL/FM)
    This Electric pump Set includes the pump(air relieve vlave , inlet & outlet gauges) , Motor, Control System,Commonbase.
    Capacity300usgpm
    Head93PSI
    RPM2980rpm
    Material:
    CasingDuctile Cast iron
    ImpellerSS304
    ShaftAISI 4340
    Shaft sleeveSS304
    SealGland packing
    Wear ringBronze
    BearingSKF
    Engine: TECHTOP&UL
    Model:TDC 447TS40U2B
    Controller : Eaton(UL/FM)
    Model:FD70-10C-L1-B

    Standards

    NFPA20, UL, FM, EN12845,CCCF Performance Ranges UL : Q: 100-750GPM H:70-152PSI FM: Q: 100-750GPM H:70-152PSI CCCF: Q:15-45L/S H:0.6-0.9Mpa NFPA20: Q: 100-3000GPM H:40-200PSI

    • Application:

     Large hotels, hospitals , schools,office buildings,supermarkets,
    commercial residential buildings, metro stations, railway stations,
    airports, kinds of transportation tunnels, petrochemical plants,
    thermal power plants, terminals, oil depots, large warehouses and
    industrial and mining enterprises, etc.
    • Five Advantages of CNP NM FIRE

       ①The late-mover advantage of products, we R&D better fire
    products than other Suppliers;   ②Have the most complete and all
    series of fire pump models;   ③Have listed diesel engines with
    self-owned brand--- NM FIRE;   ④Understand the technology of fire-
    fighting products and fire- fighting system better than other
    competitors and have better services;   ⑤Shorter delivery time.


    Please contact us if you have any other requirements.
    Thanks

    Looking forward to your enquiry.

    • FAQ


     Q1.Do you have the UL-LISTED Fire Pump Sets?  Yes, We have the UL/FM and NFPA standard Fire Pump Sets.   Q2.I need your motor drive End-suction/Split-casing fire pump, what
    information shold I sent to you ?  Sir/Madam,you can privide the Capacity, Heed, Voltage and
    Frequncy,we will make the quotation for you,If you need Jockey Pump
    or other accessories, please tell us together.   Q3.If I need your Diesel Engine Drive End-suction/Split-casing fire
    pump, what information shold I sent to you ?  You can sent the Capacity Heed, Temperature and Altitude
    (temperature and altitude will affect the performance of diesel
    engines).If you need Jockey Pump or other accessories, please tell
    us Voltage and Frequncy or accessories together.   Q4.I need the UL/FM Vertical Tubine Fire Pump Set ,please sent me
    the price.  For the motor Diver Vertical Tubine Fire Pump Set: you shoul give
    us the Capacity, Heed, Voltage Frequncy and the tank deep.  For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you
    should give us the Capacity, Heed and the tank deep.  If you need Jockey Pump or other accessories,please tell us
    together.


    • Service:


     1. Reply within 24 hours. 2. High-quality products and the most
    reasonable price 3. Data and chemical technology support.
