Multi Functional 750 GPM End Suction Fire Pump With Electric Motor Driven 155 PSI

The end suction centrifugal pump is a kind of centrifugal pump that has a casing with the suction

coming from one side and the discharge coming out the top. End suction pumps are almost entirely

single stage pumps, meaning they only have one impeller.
It is also the most common layout for centrifugal pumps and the least expensive design in most instances.

A wide variety of sizes, designs and materials of construction are on offer by various manufacturers for

various applications ranging from water at ambient temperatures to high temperature and high pressure

viscous oils, corrosive chemicals, and abrasive slurries.

Main Configuration:

• How it Works:

The end suction centrifugal pump normally contains a single impeller and a spiral like casing. The fluid that

is being pumped moves along the impeller’s vanes, which increases the fluid’s velocity. From there the fluid

is moved into the spiral like casing, where the high velocity is transformed into high pressure by a diffusion

​process.

• Performance Ranges:

• Certificate

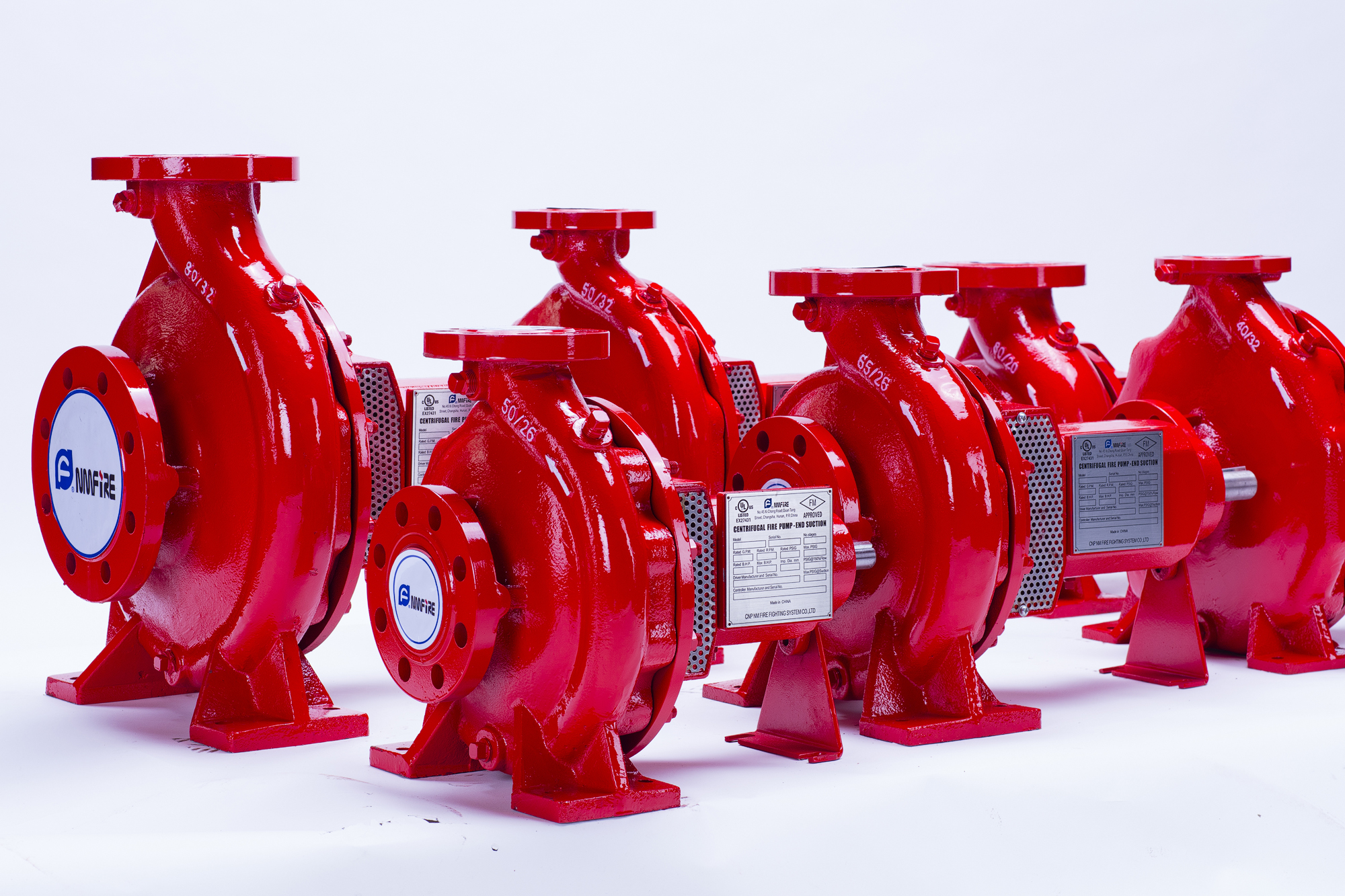

CNP NMFIRE End suction fire pump is the perfect solution for small capacity fire applications. Back pull-out design

end suction fire pump, allows the complete rotating element to be removed for servicing without disconnecting pipe

work. If a spacer coupling is fitted then driver does not have to be moved too. Simplicity of design ensures long efficient

unit life, reduced maintenance costs and minimum power consumption.

Wuhan Spico Machinery & Electronics Co., Ltd.（Hereinafter referred to as SPICO） is the Wuhan

office of  CNP NM Fire-fighting System Co.,Ltd (Hereinafter referred to as NM Fire). SPICO mainly resp-

onsible for product promotion，export declaration and foreign exchange collection of overseas orders.NM

Fire  is the subsidiary of Nanfang Zhongjin Environment Co.,Ltd, which islocated in Hunan Changsha

Economic and Technological Development Zone, mainly produceand sell Diesel engine &Motor fire pump

groups ,controllers and fire pumps which are in accordance with domestic & international standards and have

gotten related certifications .

With the help of multi-national engineers with more than 20 years of professional experience, the NMFIRE

technical team fully understands the technical requirements of fire fighting systems. They have overcome

difficulties, conquered technical aspects, created China's first in this industry and opened up a new market

for China's fire fighting research andtechnology.

The company’s mission is to protect the community fire safety, in line with the spirits of “integrity,

win-win”,glad to provide high cost-effective products and high-quality service for our customers.

Fire fighting is the last protection for life and property. These include strict technical, quality and testing requirements

for fire fighting equipment that are specified in the UL/FM product standard.

Under the premise of fully learning and understanding these standards, our company has invested huge sums of money

and energy in research and development of new products. Many innovative technologies have been developed through

product R&D. The pumps and diesel engines have reached the level of first class in the world. The research and

development of these two critical products has put an end to the long history in the domestic marketplace of taking

non-certified ordinary water pumps and diesel engines and using them in life safety applications. This has also completely

changed the domestic technology level of this industry and has allowed NM FIRE to lead the market

Start by meeting the customer obvious needs, follow by continuously deepening and exploring potential customer demand,

meanwhile, plant the philosophy into our soul.
