1000 gpm fire pump 142 psi Split Case Horizontal Centrifugal Pump Tornatech Controller UL/FM

Wuhan Spico Machinery & Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 1000 gpm fire pump 142 psi Split Case Horizontal Centrifugal Pump Tornatech Controller UL/FM from wholesalers

    Buy cheap 1000 gpm fire pump 142 psi Split Case Horizontal Centrifugal Pump Tornatech Controller UL/FM from wholesalers
    • Buy cheap 1000 gpm fire pump 142 psi Split Case Horizontal Centrifugal Pump Tornatech Controller UL/FM from wholesalers

    1000 gpm fire pump 142 psi Split Case Horizontal Centrifugal Pump Tornatech Controller UL/FM

    Ask Lasest Price
    Brand Name : CNP NM FIRE
    Model Number : SCF150-125-250(UL)
    Certification : UL /FM
    Price : Negotiation
    Payment Terms : L/C, T/T
    Delivery Time : 60 Days
    • Product Details
    • Company Profile

    1000 gpm fire pump 142 psi Split Case Horizontal Centrifugal Pump Tornatech Controller UL/FM

    • 1000usgpm@142psi NM Fire Split Case Motor Pump Set Tornatech Controller UL/FM
    • Product Details

    Motor Pump SetPump: NM Fire Split Case
    Model: SCF150-125-250(UL)
    Q=1000usgpm H=142psi n=3550rpm

    Material:
    Casing---Ductile Cast iron
    Impeller---SS304
    Shaft--- AISI 4340
    Shaft sleeve---SS304
    Seal------ Gland packing
    Wear ring----Bronze
    Bearing---SKF
    Engine: TECHTOP&UL
    Model: TDC 404TS125U2B
    125HP/60HZ/380V/3PH
    Controller : Tornatech (UL/FM)
    Model: GPY - 380 / 75 / 3 / 60 / A4

    • Application:

    All petroleum, petrochemical ,chemical, military and naval institutes, oil fields of Petro China, Sinopec, CNOOC, pipelines Bureaus, oil repositories, oil terminals, construction companies, oil refineries, offshore platforms, etc.

    Fire-fighting Engineering Companies,airports,highway tunnels,hotels,hospitals,supermarkets,office buildings, national grain storages, thermal power plants, shipyards,paper mills, subway stations,railway stations, etc.

    Steel plants, residential regions,industrial and mining enterprises,house building materials supermarkets,etc.

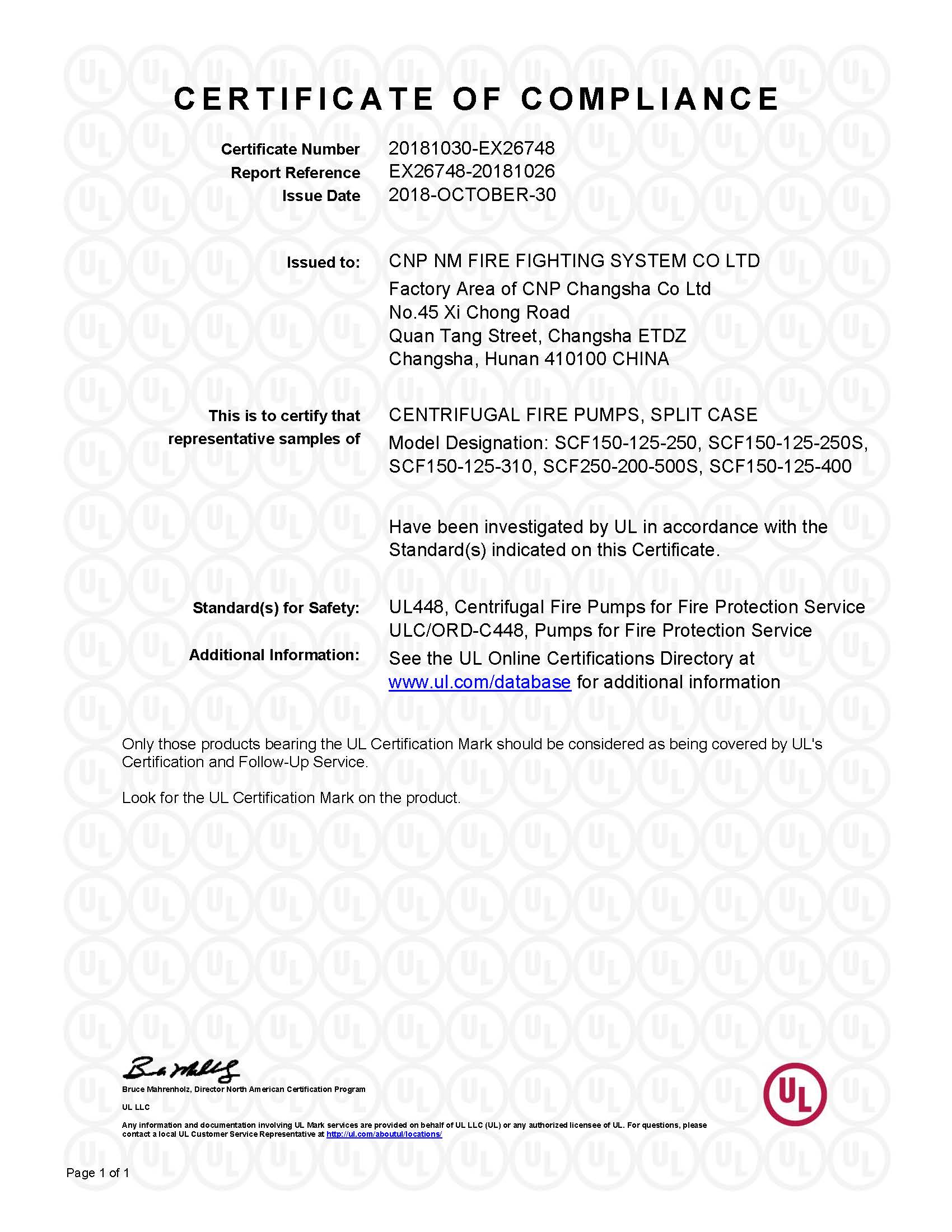

    • CERTIFICATE

    NM Fire is the first member of NFPA from Chinese pump manufacturers . the production of fire pump groups is strictly in accordance with NFPA20, production process and performance testing also meet the requirement of ISO9001, some kinds of products have got APSAD(France), UL , FM and CCCF certificates. We are the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well,also the first company in the world who was authorized by UL CCIC as witness testing center for both fire pumps and fire fighting engines.


    • ABOUT NM FIRE​:

    CNP NM Fire-fighting System Co.,Ltd(Hereinafter referred to as NM Fire)is the subsidiary of Nanfang Zhongjin Environment Co., Ltd, NM Fire is located in Hunan Changsha Economic and Technological Development Zone, mainly produce and sell Diesel engine &Motor fire pump groups , controllers and fire pumps which are in accordance with domestic & international standards and have gotten related certifications . NM Fire is the member enterprise of NFPA, the technical team consists of a number of engineers and foreign experts who have more than 20 years of experience in research and development for global fire-fighting equipments. There are several models have gotten UL,FM(America), APSAD(France), Setsco(Singapore)certificates.

    The company’s mission is to protect the community fire safety, in line with the spirits of “integrity, win-win”, glad to provide high cost-effective products and high-quality service for our customers.


    • Product Range



    In addition to the above models, there are many model UL/FM testing in process.

    Looking forward to your enquiry.

    • FAQ

    Q1.Do you have the UL-LISTED Fire Pump Sets?


    Yes, We have the UL/FM and NFPA standard Fire Pump Sets.


    Q2.Please quote the XXGPM@XXXPSI Pump without driver.


    Sorry, pump are not sold separately, pumps and drives are sold together.


    Q3.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?


    Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.


    Q4.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?


    You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.


    Q4.I need the UL Vertical Tubine Fire Pump Set ,please sent me the price.


    For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage Frequncy and the tank deep.

    For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed and the tank deep.

    If you need Jockey Pump or other accessories,please tell us together.


    Q5.May I ask what is the lead time of this fire pump and the jockey piump if ever we order them from you?


    Under normal cicumstance,75days ,we will notify the delivery date after receiving the deposit.


    Q6.Please advise if you can also send me the cost for the freight?


    Pls. confirm the model first,then we wil estimate estimate. The Fire Pump Sets are customized production, actual packaging size and estimated size will be different.


    • Service:

    1. Reply within 24 hours.
    2. High-quality products and the most reasonable price
    3. Data and chemical technology support.
