    Diesel Engine Driven end suction fire pump Fire Water Pump centrifugal pump

    Ask Lasest Price
    Brand Name : CNP NM FIRE
    Model Number : ESF80/26
    Certification : UL Listed
    Price : Negotiation
    Payment Terms : L/C, T/T
    Delivery Time : 60 Days
    • Product Details
    • Company Profile

    Diesel Engine Driven end suction fire pump Fire Water Pump centrifugal pump

    • diesel engine DRIVER 750 GPM END SUCTION Pump set Ul Listed
    • Product Details

    Diesel Engine Pump Set( Heat Exchanger) UL LISTED
    NM Fire End Suction Pump
    ModelESF80/26This Diesel Engine Group includes the pump(inlet & outlet gauges) Diesel Engine, Commonbase, Silencer, ,Batteries,Flexible exhaust connector, Control System, Coupling (non-listed), Cooling System.




    Please contact me if you need Fuel tank, Main relief valve,Waste corn or other accessories.
    Capacity750GPM
    Head115PSI
    RPM2980rpm
    Material:
    CasingDuctile Cast iron
    ImpellerBronze
    ShaftSS420
    SealGland packing
    Wear ringBronze
    BearingSKF
    Engine: NM FIRE (UL)
    Model:NM4-108B
    Controller : Tornatech (UL/FM)
    Model:GPD-24-120/220


    The above models are used for 750usGPM@81M END SUCTION Pump set.

    Please contact us if you have any other requirements.

    Thanks

    Diesel Engine Driven end suction fire pump Fire Water Pump centrifugal pump

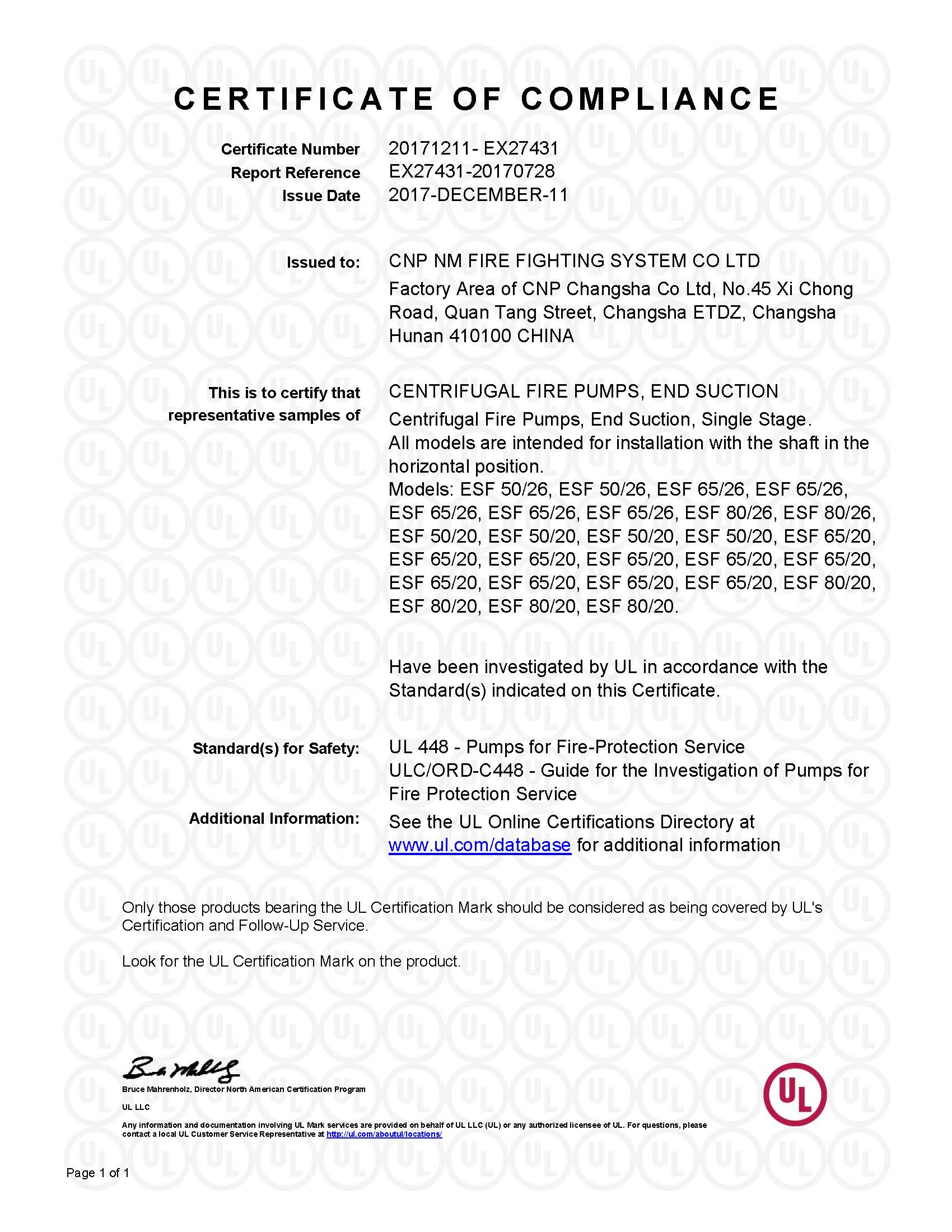

    • CERTIFICATE

    • Five Advantages of CNP NM FIRE

    •   ①The late-mover advantage of products, we R&D better fire
      products than other Suppliers;   ②Have the most complete and all
      series of fire pump models;   ③Have listed diesel engines with
      self-owned brand--- NM FIRE;   ④Understand the technology of fire-
      fighting products and fire- fighting system better than other
      competitors and have better services;   ⑤Shorter delivery time.


    • End suction Pump Model Chart


      Rated CapacityPUMP MODEL(UL)Rated Net Pressure Range,Approx. Speed,Impeller Diameter, mm.
      GPM (US)PSIRPMMaxMin
      50ESF40/2076-1112980225190
      50ESF40/20108-1573550225190
      100ESF40/2072-1092980225190
      100ESF40/26100-1382980264225
      200ESF50/2072-992980225195
      200ESF50/20102-1423550225195
      200ESF50/26105-1402980264230
      250ESF50/2069-992980225195
      250ESF50/20101-1413550225195
      250ESF50/2699-1362980264230
      250ESF65/20113-1523550225195
      250ESF65/2086-1072980225210
      250ESF65/26119-1472980264245
      300ESF65/20112-1523550225195
      300ESF65/2086-1072980225210
      300ESF65/26119-1472980264245
      400ESF65/20108-1503550225195
      400ESF65/2083-1042980225210
      400ESF65/26119-1412980264245
      450ESF65/20105-1483550225195
      450ESF65/2080-1022980225210
      450ESF65/26114-1382980264245
      500ESF65/20101-1453550225195
      500ESF65/2077-992980225210
      500ESF65/26111-1352980264245
      500ESF80/2090-1002980225210
      500ESF80/20129-1423550225210
      500ESF80/26116-1382980264245
      750ESF80/2087-982980225210
      750ESF80/20127-1423550225210
    • FAQ

    Q1.Do you have the UL-LISTED Fire Pump Sets?

    Yes, We have the UL/FM and NFPA standard Fire Pump Sets.


    Q2.Please quote the XXGPM@XXXPSI Pump without driver.

    Sorry, pump are not sold separately, pumps and drives are sold together.


    Q3.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?

    Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.


    Q4.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?

    You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.


    Q5.May I ask what is the lead time of this fire pump and the jockey piump if ever we order them from you?

    Under normal cicumstance,75days ,we will notify the delivery date after receiving the deposit.


    Q6.Please advise if you can also send me the cost for the freight?

    Pls. confirm the model first,then we wil estimate estimate. The Fire Pump Sets are customized production, actual packaging size and estimated size will be different.
