UL Listed /FM Approved End Suction Fire Pump 500gpm @110psi with Electric Motor Driven

Pump: NM FIRE (UL/FM)
Model: ESF65/20
Q= 500usgpm H=101psi n=3550rpm
Material:
Casing---Ductile Cast iron
Impeller---Bronze
Shaft--- SS420
Seal------ Gland packing
Wear ring----Bronze
Bearing---SKF

Motor: Techtop (UL)
Model: TXC364TS60U2B
45KW/60HZ /220V/ 3PH

Control Panel: Eaton (UL/FM)
Model: FD70-60-B-L1-B

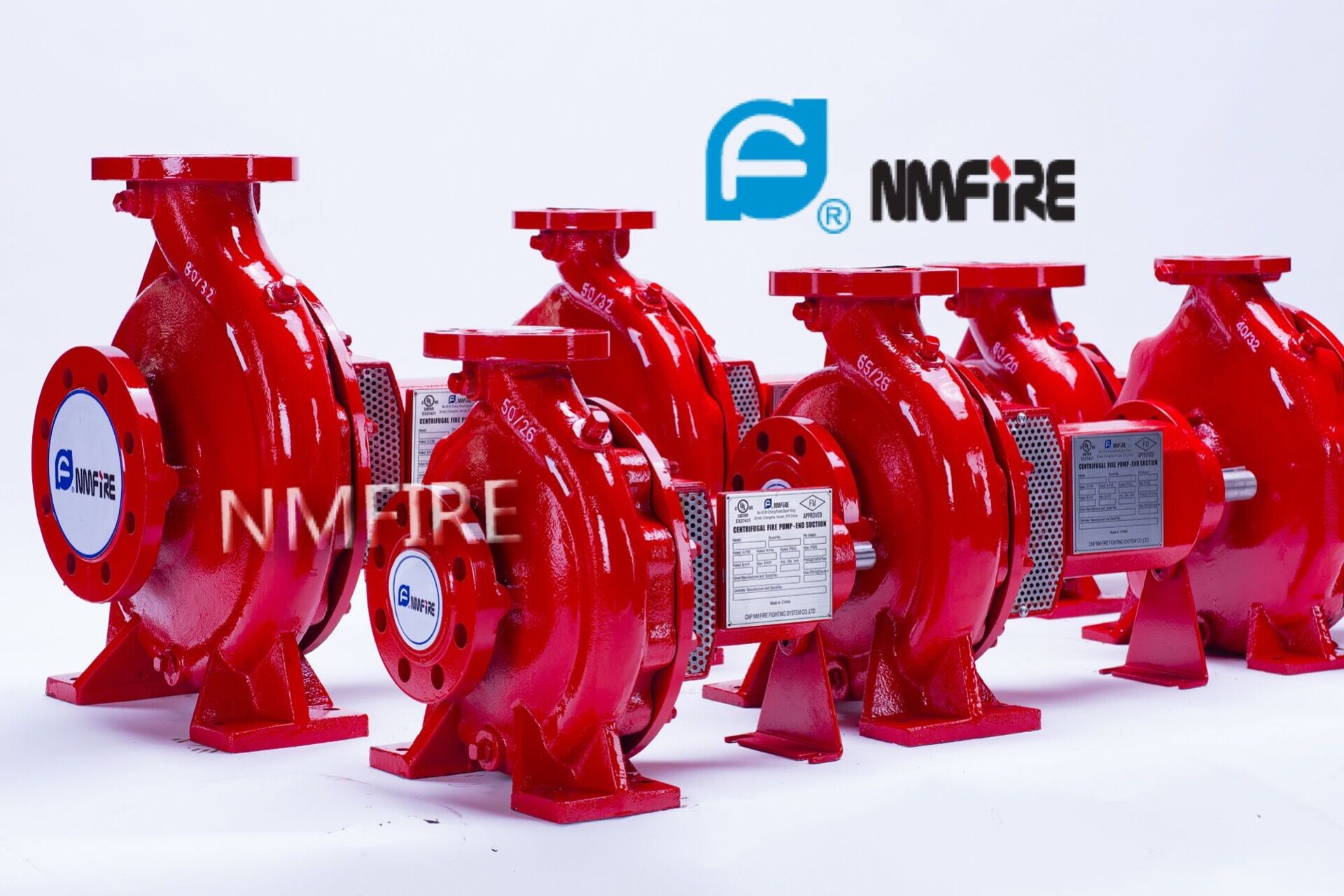

CNP NMFIRE End suction fire pump is the perfect solution for small capacity fire applications. Back pull-out design end suction fire pump, allows the complete rotating element to be removed for servicing without disconnecting pipe work. If a spacer coupling is fitted then driver does not have to be moved too. Simplicity of design ensures long efficient unit life, reduced maintenance costs and minimum power consumption.
