    165PSI Centrifugal Diesel Engine Pump Set For Chemical / Oil Fields NFPA20 Accordance

    Ask Lasest Price
    Brand Name : CNP NM FIRE
    Model Number : package
    Certification : UL/FM
    Payment Terms : L/C, T/T
    Delivery Time : 30-45 Working Days
    Price : Negotiation
    • Product Details
    • Company Profile

    165PSI Centrifugal Diesel Engine Pump Set For Chemical / Oil Fields NFPA20 Accordance

    UL/FM Listed 2000GPM @ 165PSI Skid Mounted Fire Pump With Split Case Fire Pump Sets NFPA20 Accordance

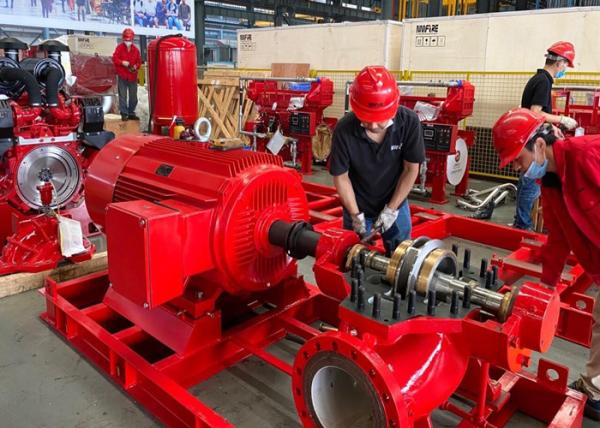

    NM Fire offers a complete pump room engineering service based on fire fighting and customer specifications. We also supply materials and supervise installation in the pump room.

    Customers benefit from years of obtained on-site experience. We are familiar with the latest and extremely specific fire fighting standards and guarantee that the pump rooms are fully compliant with these standards. KEY FEATURES

    • Complete pump installations in a pump room, pump house or container
    • Containerized unit completely assembled, suitable for (immediate) operation
    • Easy transportation of containerized unit to location of installation
    • Suitable for any climate or site condition
    • Horizontal split case, vertical in-line and vertical turbines available
    • Packaged fire pump systems provide single source system responsibility and can help eliminate many potential field installation interface problems.

    Parameters:


    HEADPUMP MODELSPEEDMAX SHAFT POWERMOTOR DRIVERDIESEL ENGINE DRIVER
    PSIFEETMETERRPMHPKW

    MODEL
    (TECHTOP&UL)

    HPKW

    MODEL
    (NM&UL)

    HPKWMODEL(DE MAAS&FM)HPKW
    165381116SCF200-150-460
    (8x6")
    1800
    (60Hz)
    357266.0TXC 586/7T350U4B
    (NEMA/TEFC)
    350280NM6-128473352DF12TiH-F338252

    Pump types:

    Split-case pump, Jockey pump, In-line pump


    Configuration types:


    1. Electric motor driven fire pump sets
    2. Diesel engine driven fire pump sets
    3. jockey pump sets


    Standard:


    • UL Listed
    • FM Approval
    • NFPA20 Package

    Performance Ranges:


    UL:

    Q: 500-4000GPMH:100-190PSI


    FM:

    Q: 500-4000GPMH:100-190PSI


    CCCF:

    Q:20-500L/SH:0.42-2.0Mpa


    NFPA20:

    Q: 300-8000GPMH:60-300PSI


    Application:

    industrial fields: All petroleum, petrochemical, chemical, oil fields, pipelines bureaus, oil repositories, oil terminals, oil refineries, offshore platforms, etc.; National grain storages, thermal power plants, steel plants, shipyards, paper mills, etc.;

    Commercial Field: five-star hotels, hospitals, schools, supermarkets, office buildings, large-scale commercial complex, highway tunnels, subway stations, railway stations, airports; Fire-fighting Engineering Companies;


    Service:

    1. Any inquiries will be replied within 12 hours.
    2. Dedicated to high quality, stable supply and considerate service.
    3. Strict on raw material selection.
