Professional Fire Pump Diesel Engine 125KW Power For Fire Fighting System

Wuhan Spico Machinery & Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Professional Fire Pump Diesel Engine 125KW Power For Fire Fighting System from wholesalers

    Buy cheap Professional Fire Pump Diesel Engine 125KW Power For Fire Fighting System from wholesalers
    • Buy cheap Professional Fire Pump Diesel Engine 125KW Power For Fire Fighting System from wholesalers
    • Buy cheap Professional Fire Pump Diesel Engine 125KW Power For Fire Fighting System from wholesalers
    • Buy cheap Professional Fire Pump Diesel Engine 125KW Power For Fire Fighting System from wholesalers

    Professional Fire Pump Diesel Engine 125KW Power For Fire Fighting System

    Ask Lasest Price
    Brand Name : CNP NM FIRE
    Model Number : IF05ATIH-F
    Certification : FM/NFPA20
    Payment Terms : L/C, T/T
    Delivery Time : 35-40 Working Days
    Price : Negotiation
    • Product Details
    • Company Profile

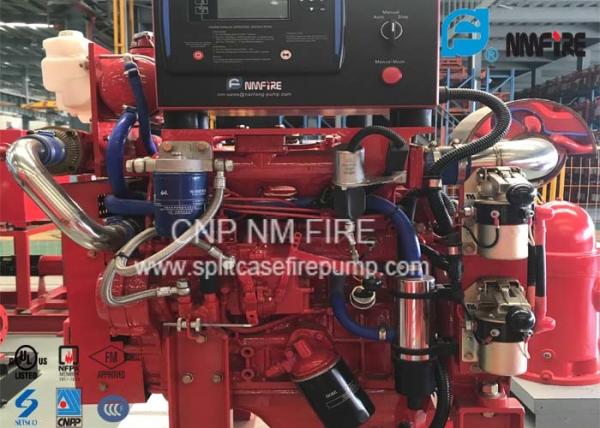

    Professional Fire Pump Diesel Engine 125KW Power For Fire Fighting System

    FM Approved Original De Maas125KW Fire Pump Diesel Engine For Firefighting Application


    De Maas Firefighting Engines:

    • Can answer worldwide and country specific demands for various specifications, including FM approval
    • Are thoroughly tested and certified in our own testing facilities in The Netherlands
    • Are manufactured with great accuracy and precision
    • Are available in a power range of 49kw-652kw (FM Approved) and 53kw-724kw (non-approved)
    • Have a proven record worldwide.

    De Maas firefighting engines:


    Since 1922, De Maas is known as reliable manufacturer and supplier of high quality engines to the industry.
    Combining renowned base-products such as Doosan, lveco, JCB and Lister-Petter engines with the newest techniques, qualified employees and personal attention. This in combination with the highest manufacturing standards, the Dutch company De Maas offers reliable, customized fire pump engines all over the world for many years.


    General Engine DataIF05AH-FIF05ATH-FIF05ATIH-FIF05BTIH-F
    Type4 cycle, 4 Cylinder In Line, Water cooled
    AspirationNaturallyTurbo chargedTurbo charged, Intercooled
    Cylinder TypeReplaceable dry liner
    Bore x Strokemm104 x 132
    Displacementlitre4.483
    Compression Ratio17.5 : 1
    Valves per Cylinder- Intake1
    - Exhaust1
    Valve Timing- IntakeOpening: 15⁰ BTDC - Close: 35⁰ ABDC
    - ExhaustOpening: 69⁰ BBDC - Close: ATDC
    Valves lashes at cold- Intakemm0.25 ±0.5
    - Exhaustmm0.50 ±0.5
    Combustion TypeDirect Injection
    Firing Order1 – 3 – 4 – 2
    RotationCounter Clockwise, viewed from flywheel
    Dimension L x W x H (L=Construction Length)± mm955 x 955 x 1,497955 x 955 x 1,529977 x 955 x 1,537977 x 955 x 1,537
    Dry WeightApprox. kg600620
    Engine Rating1,7602,1002,2002,3502,6002,8002,940
    IF05AH-FkW52555556585960
    IF05ATH-FkW74869095979798
    IF05ATIH-FkW91118122125130131132
    IF05BTIH-FkW----144144144

    Advantage:


    • We are the first member of NFPA among Chinese pump manufacturers. The production of our fire pump groups is strictly in accordance with NFPA20.
    • We are the first manufacturer in the world who have both UL/FM certification for fire pump and the fire-fighting diesel engine, also the only UL Witness laboratory in Asia for fire-fighting pump and fire-fighting diesel engine.
    • We have applied dozens of patents.
    • We have young team, top experts.

    Service:

    1 . Quick response.—our team working 24/7 to respond client, inquiries and question all the time. Most problems can be solved within 24 hours


    2 . Dedicated to high quality, stable supply and considerate service.
