UL Listed / FM Approved Fire Pump Control Panel For Fire Fighting Usage

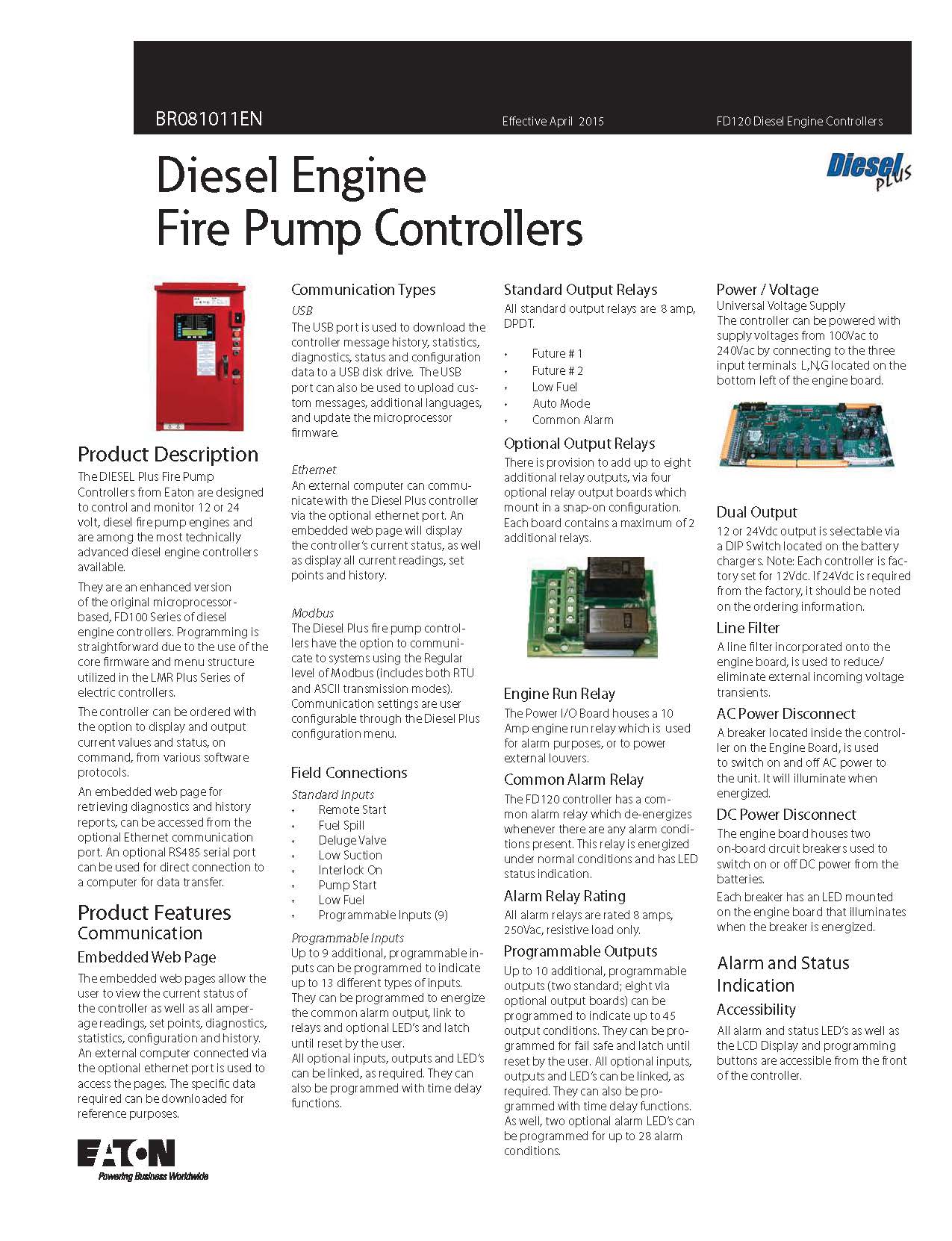

The Diesel Plus Controller is a comprehensive, multi-function microprocessor based Fire Pump Controller.

Designed to meet the needs of markets worldwide, the Diesel Plus controller is certified by the following authorities:

Underwriters Laboratories (UL), Factory Mutual Research (FM), Canadian Standards Association (CSA), New York

Department of Buildings (NYSB), and meet CE and U.B.C. / C.B.C. Seismic approval requirements

System History:

The Diesel Plus controller will record the last 10,000 alarm/ status messages in its memory that can be viewed on

the main display, saved to a USB storage device, or viewed on the optional embedded webpage. In order to view

the messages on the display press the up or down arrow buttons from the main screen until the display shows “Display

Message History”. Press the Ack. Alarm button to view the message history. The display will now show three messages

at a time. Pressing the up or down arrow buttons will allow navigation showing the most recent message to the oldest

message. Refer to Appendix L for common messages and their meaning. Refer to Section 7 to save the message history

to a USB storage device or to view the message history on the optional embedded webpage.

Weekly Exerciser Test

Turn the mode selector switch to the “OFF” position. To test the Weekly Exerciser, preprogram the controller to initiate the

test at a time suitable to the user. Turn the mode selector switch to the “AUTO” position. At the programmed time and date

the drain valve solenoid will open. The Engine will crank and start. The “Engine Run” annunciator will illuminate.and the drain

valve solenoid will close. Press the STOP pushbutton. The engine will stop. Reprogram Weekly Exerciser for normal operation.

Automatic Start Test

Turn the mode selector switch to the “AUTO” position. Ensure that water pressure is available and the LCD display on the

display panel is reading the system pressure correctly. Decrease water pressure below the programmed start point. The

controller will begin its cranking cycle. Should the engine fail to start after 6 crank and rest cycles, the audible alarm will

sound and the “Fail To Start” annunciator will illuminate. Turning the mode selector switch to the “OFF” position will silence

the alarm. When engine starts, “Engine Run” annunciator illuminates.

Increase water pressure above programmed START point. Press the stop pushbutton on the enclosure. If the pressure is

satisfied, and there are no other starting conditions the engine will stop. OR If Auto Stop is programmed for "On", the engine

will stop automatically after the Run Period Timer times out and pressure is satisfied. The RPT is programmed by the user; the

factory setting is 30 minutes. If the Sequential Timer is > 0 seconds, automatic start will be delayed by the number of seconds

programmed.

Wuhan Spico Machinery & Electronics Co., Ltd.（Hereinafter referred to as SPICO） is the Wuhan

office of  CNP NM Fire-fighting System Co.,Ltd (Hereinafter referred to as NM Fire). SPICO mainly resp-

onsible for product promotion，export declaration and foreign exchange collection of overseas orders.NM

Fire  is the subsidiary of Nanfang Zhongjin Environment Co.,Ltd, which islocated in Hunan Changsha

Economic and Technological Development Zone, mainly produceand sell Diesel engine &Motor fire pump

groups ,controllers and fire pumps which are in accordance with domestic & international standards and have

gotten related certifications .

With the help of multi-national engineers with more than 20 years of professional experience, the NMFIRE

technical team fully understands the technical requirements of fire fighting systems. They have overcome

difficulties, conquered technical aspects, created China's first in this industry and opened up a new market

for China's fire fighting research andtechnology.

The company’s mission is to protect the community fire safety, in line with the spirits of “integrity,

win-win”,glad to provide high cost-effective products and high-quality service for our customers.

Fire fighting is the last protection for life and property. These include strict technical, quality and testing requirements

for fire fighting equipment that are specified in the UL/FM product standard.

Under the premise of fully learning and understanding these standards, our company has invested huge sums of money

and energy in research and development of new products. Many innovative technologies have been developed through

product R&D. The pumps and diesel engines have reached the level of first class in the world. The research and

development of these two critical products has put an end to the long history in the domestic marketplace of taking

non-certified ordinary water pumps and diesel engines and using them in life safety applications. This has also completely

changed the domestic technology level of this industry and has allowed NM FIRE to lead the market

Start by meeting the customer obvious needs, follow by continuously deepening and exploring potential customer demand,

meanwhile, plant the philosophy into our soul.
