UL FM Fire Pump Controller Worked for Jockey Pump for Fire Fighting Use

DEMANDS INFO FORM Kathy.pdf

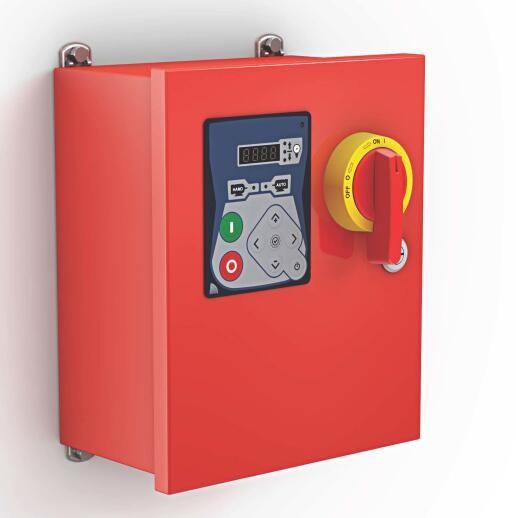

The model JP jockey pump controllers are specifically designed to control jockey pumps in order to maintain the
desired water pressure in fire pump serviced systems. A jockey pump installation prevents unnecessary starting

of the fire pump due to small leaks in the sprinkler system piping. The model JP jockey pump controller is supplied

with the front door mounted, solid state controls with digital iPD+ operator interface. The iPD+ allows the user to

set and adjust all parameters required such as start and stop pressures, ON or OFF timers and units of measure

(psi, bar, kPA, feet of head, meter of head) without having to open the controller door. The iPD+ also continuously

displays the system pressure and the start and stop pressure settings. LED visual indications include manual motor

run, automatic motor run, system pressure above stop pressure setting, system pressure in-between.

• Drain Valve Solenoid
  Used for Weekly Test purposes.
• Data / Memory Storage
  Up to 10K Events - On Board Memory
  Save Fault & Alarm Information to USB Drive
• Communication
  USB Port / Drive
  Transfer Data to / from portable USB Device
  Embedded Web Pages*
  View Current Status, Data Values, Programmed Set Points and History
  Ethernet*
  Direct Connection / Data Transfer with a Computer
  RS485 Port*
  MODBUS Communication
  * COM Option must be ordered for this function.
• Approvals
  Meet FM1321 / 1323

Application:

Industrial fields: All petroleum, petrochemical, chemical, oil fields, pipelines bureaus, oil repositories, oil terminals, oil refineries, offshore platforms, etc.; National grain storages, thermal power plants, steel plants, shipyards, paper mills, etc.;
Commercial Field: five-star hotels, hospitals, schools, supermarkets, office buildings, large-scale commercial complex, highway tunnels, subway stations, railway stations, airports; Fire-fighting Engineering Companies;

Service:

Wuhan Spico Machinery & Electronics Co., Ltd.（Hereinafter referred to as SPICO） is the Wuhan

office of  CNP NM Fire-fighting System Co.,Ltd (Hereinafter referred to as NM Fire). SPICO mainly resp-

onsible for product promotion，export declaration and foreign exchange collection of overseas orders.NM

Fire  is the subsidiary of Nanfang Zhongjin Environment Co.,Ltd, which islocated in Hunan Changsha

Economic and Technological Development Zone, mainly produceand sell Diesel engine &Motor fire pump

groups ,controllers and fire pumps which are in accordance with domestic & international standards and have

gotten related certifications .

With the help of multi-national engineers with more than 20 years of professional experience, the NMFIRE

technical team fully understands the technical requirements of fire fighting systems. They have overcome

difficulties, conquered technical aspects, created China's first in this industry and opened up a new market

for China's fire fighting research andtechnology.

The company’s mission is to protect the community fire safety, in line with the spirits of “integrity,

win-win”,glad to provide high cost-effective products and high-quality service for our customers.

Fire fighting is the last protection for life and property. These include strict technical, quality and testing requirements

for fire fighting equipment that are specified in the UL/FM product standard.

Under the premise of fully learning and understanding these standards, our company has invested huge sums of money

and energy in research and development of new products. Many innovative technologies have been developed through

product R&D. The pumps and diesel engines have reached the level of first class in the world. The research and

development of these two critical products has put an end to the long history in the domestic marketplace of taking

non-certified ordinary water pumps and diesel engines and using them in life safety applications. This has also completely

changed the domestic technology level of this industry and has allowed NM FIRE to lead the market

Start by meeting the customer obvious needs, follow by continuously deepening and exploring potential customer demand,

meanwhile, plant the philosophy into our soul.
